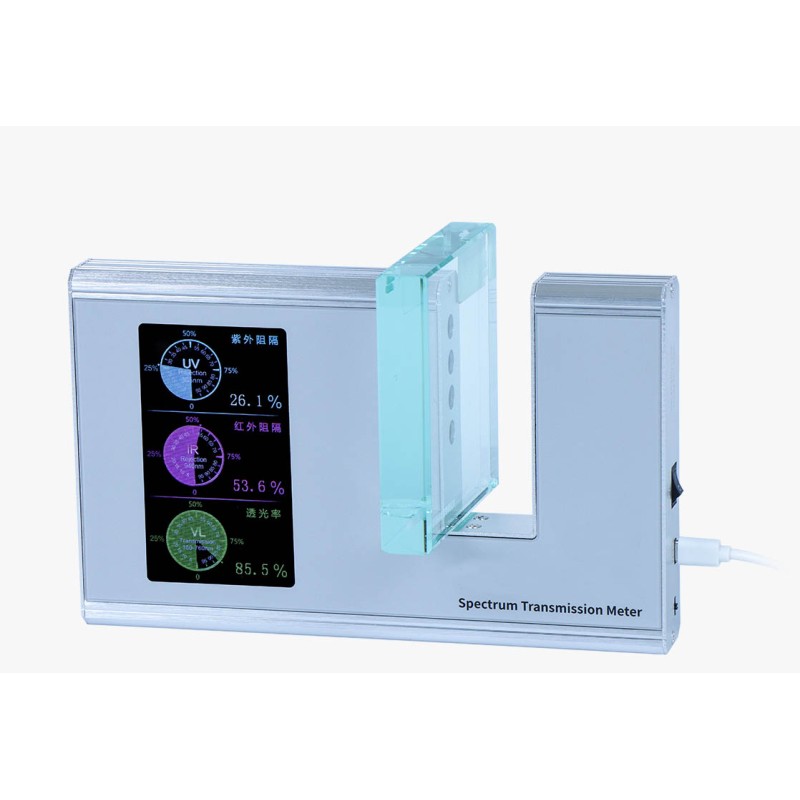

Solar Film Transmission Meter for Film and Glass
The LTME-22102 meter stands out for its flexibility, thanks to its parallel light path design and spacious test slot. It's perfect for evaluating solar films, laminated glass, and various thick or multi-layered materials. This instrument is an excellent choice for product exhibitions, manufacturing processes, quality control, and inspecting solar films.
Features:

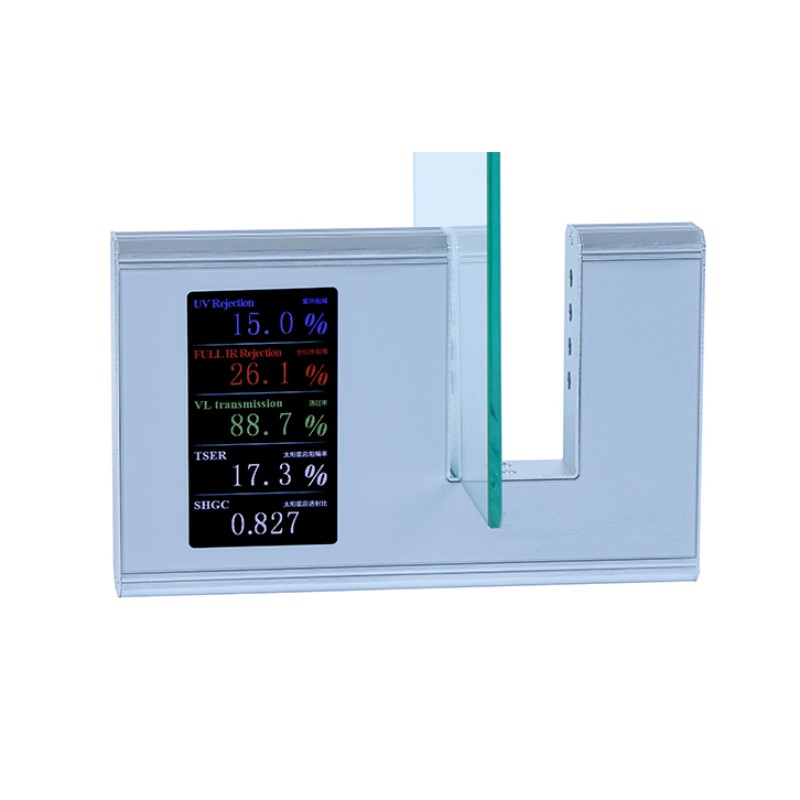

- The device is capable of measuring seven essential metrics at once: UV rejection at 365nm, IR rejection at 940nm and 1400nm, as well as across the entire IR spectrum. It also tracks visible light transmittance, TSER, and SHGC.
- Real-Time Auto Calibration
- USB Type-C Port
- Support Pillar Included
Specification:
| Parameter | Value |
|---|---|
| UV Peak Wavelength | 365nm |
| IR Peak Wavelength | 940nm, 1400nm, Full IR and SHGC |
| Visible Light | 380-760nm (conform to CIE photopic luminosity function) |
| Resolution | 0.1% |
| Measurement Accuracy | ± 2% (colorless and uniform transparent material) |
| Test Card Slot | 47mm×91mm (W*H) |
| Weight | about 590g |
| Dimension | 216mm * 134mm 8 29mm (L*H*W) |
| Power Supply | DC5V/1A |
| No. | Description | Quantity | Unit |
|---|---|---|---|
| 1 | Solar Film Transmission Meter | 1 | pcs |
| 2 | DC5V Adapter | 1 | pcs |
| 3 | User Manual | 1 | pcs |
| 4 | Certificate / Warranty Card | 1 | pcs |
| 5 | Support Pillar | 1 | pcs |
| 6 | Packing Box Dimension 34*29*9 cm（L*W*H） | 1 | pcs |
| General | |
| Batteries Inside | Yes |
| Characteristic | Real-Time Auto Calibration |
| HS Code | 9031499090 |
| Port of Shipping | Guangzhou, Shenzhen, Shanghai |
| Original | Shenzhen |
| Resolution | 0.1% |
| Accuracy | ± 2% (colorless and uniform transparent material) |
Solar Film Transmission Meter for Film and Glass
- Brand: ROKTOOLS
- Product Code: LTME-22102
- Availability: In Stock
-
$399.99
