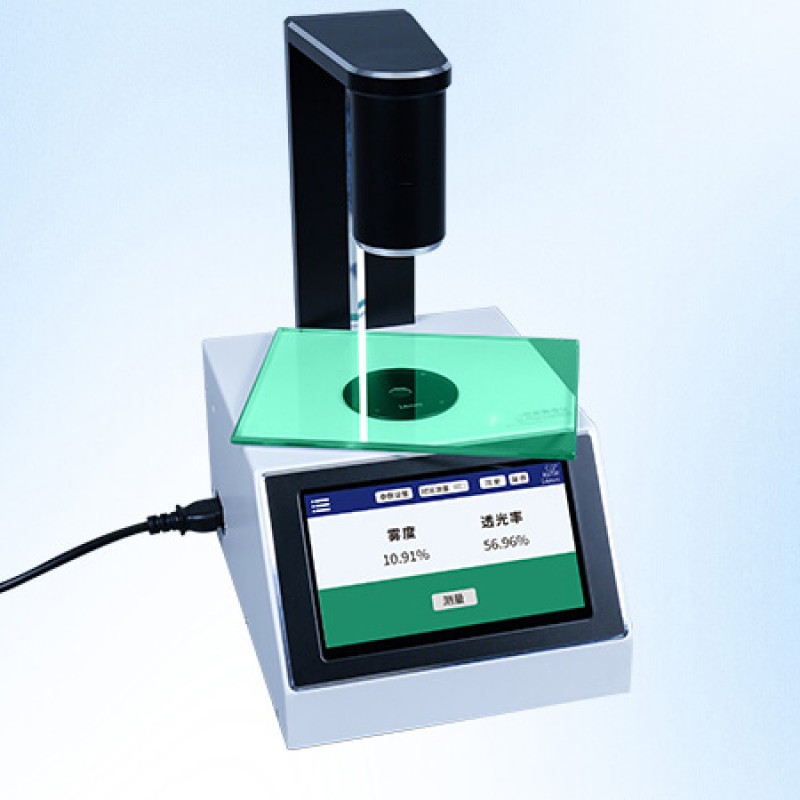

Color Haze Meter Spectral Tansmittance Tester 3 In 1

Colorimeter Haze Meter utilizes a full-spectrum LED light source along with cutting-edge spectral sensors to deliver precise measurements of haze, transmittance, clarity, turbidity, color, and Pt-Co levels. It's perfect for transparent and semi-transparent materials, including plastics, glass, films, and various liquids. With its built-in display for spectral transmission curves, Users can conduct detailed optical analyses. The device features both horizontal and vertical measurement capabilities, making it suitable for liquid samples and larger objects. Additionally, its dual-aperture system, consisting of 14mm and 5mm options, guarantees accurate readings for smaller specimens. Plus, with PC software integration, Outputing data and generating reports is a breeze.

Specification:

Parameter	Value
Illumination Geometry	D/0°
Illumination Light Source	Full spectrum LED light source
Spectral Range	400-700nm
Spectral Interval	10nm
Measuring Aperture	5mm/14mm
Measurement Conditions	Light source D65, field of view 10°; Light source A, field of view 2°; Light source C, field of view 2°
Measuring Time	About 3s
Measuring Parameter	Haze, Transmittance, CIE Lab, LCh, Yxy, Spectral transmittance, Clarity, Turbidity, Pt-Co(Hazen)
Transmittance Resolution	0.01%
Transmittance Accuracy	±2%, ±1% typical
Transmittance Repeatability	≤0.03 (Standard deviation of 30 measurements at 3-second intervals on a standard haze plate with transmittance ~80% and haze ~30, after preheating calibration)
Haze/Clarity Resolution	0.01%
Haze/Clarity Accuracy	Better than ±2%
Haze/Clarity Repeatability	≤0.03 (Standard deviation of 30 measurements at 3-second intervals on a standard haze plate with transmittance ~80% and haze ~30, after preheating calibration)
Color Repeatability	Standard deviation ΔE*ab is within 0.03 (Standard deviation of 30 measurements at 3-second intervals on a standard haze plate with transmittance ~80% and haze ~30, after preheating calibration)
Turbidity Resolution	0.1NTU
Turbidity Range	0-1000NTU
Turbidity Accuracy	≤±(5%H+1NTU), H is standard
Pt-Co Resolution	0.1
Pt-Co Range	0-1000
Pt-Co Accuracy	≤±(5%H+1), H is standard
Power Supply	100~277V, 0.4A, 50/60HZ
Display	7 inch 1024*600 dot matrix IPS color screen
Language	Simplified Chinese, English
Data Transmission	USB (Type-C)
Operating Temperature Range	0-45℃, 0-85%RH(no condensation)
Storage Temperature Range	25-55℃, 0-85%RH (no condensation)
Dimension	211mm×264mm×360mm (LWH)
Weight	5300g
