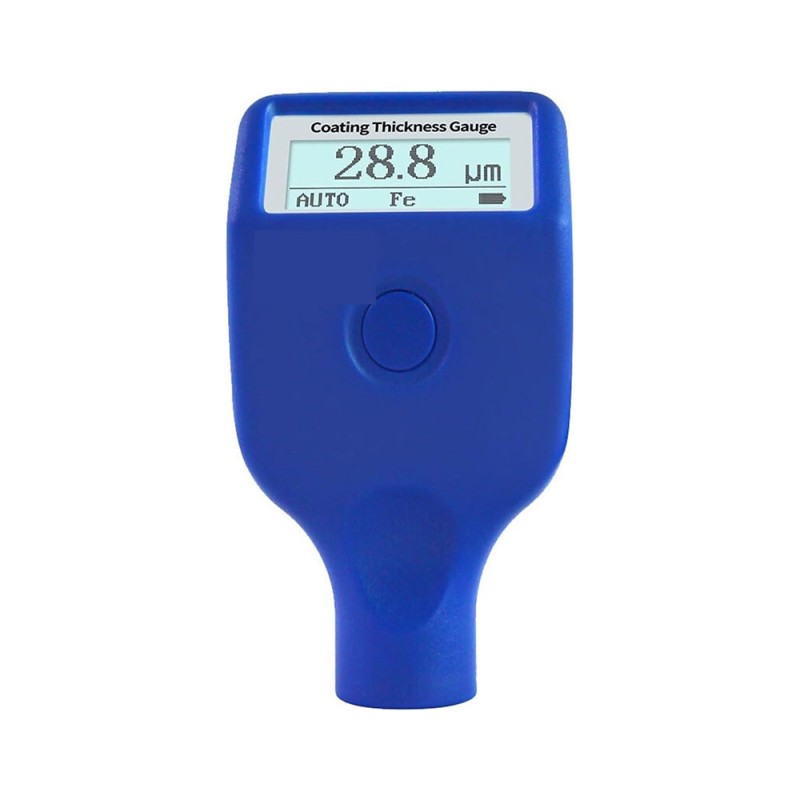

Dry Film Thickness Gauge (DFT) Range 0.0-5000μm Paint Thickness Gauge

A highly accurate, integrated coating thickness gauge that employs both Hall effect and eddy current measurement techniques. Utilizing the Hall effect, it assesses non-ferromagnetic coatings on ferromagnetic metal substrates. Meanwhile, through eddy current technology, it evaluates non-conductive coatings on non-magnetic metal substrates. At ambient temperature, the only ferromagnetic metals are iron, cobalt, nickel, and gadolinium. Common non-ferromagnetic metals consist of copper, aluminum, zinc, and chromium. Hall Effect: Appropriate for measuring non-ferromagnetic coatings on ferromagnetic substrates. Eddy Current: Appropriate for measuring non-conductive coatings on non-magnetic metal substrates

Features:

Identify iron, non-ferrous, non-metallic substrates and automatically switch to measurement modes in 0.5 seconds
Equipped with a dual-use probe for both ferrous (iron) and non-ferrous (aluminum) materials
offers three modes: Fe (ferrous), NFe (non-ferrous), and Fe/NFe (automatic)
Designed to measure coatings on ultra-thin materials with precision.
Available in both English and Chinese Language

Parameter	Value
Probe Tip	Ruby fixed
Measuring Principle	Ferrous: Hall Effect / Non-ferrous: Eddy current
ProbeType	Integrated probe
Measuring Range	0.0-5000μm
Resolution	0.1μm: 0μm - 99.9μm 1μm: 100μm - 999μm 0.01mm: 1.00mm - 2.00mm
Accuracy	≤±(3% reading+2μm)
Unit	μm / mil
Measuring Interval	0.5s
Minimum Measuring Area	Ø = 25mm
Minimum curvature	Convex:5mm / Concave:25mm
Minimum Substrate Thickness	Fe:0.2mm / NFe:0.05mm
Display	128×48 dot matrix LCD
Power Supply	2pcs of 1.5V AAA alkaline battery
Operation Temperature Range	0℃-50℃
Storage Remperature Range	-20℃-60℃
Gauge Size	1016228 mm
Weight(with battery)	79 g

Package:

No.	Description	Quantity	Unit
1	Coating Thickness Gauge	1	Set
2	Fe Zero-adjustment Plate	1	pcs
3	NFe Zero-Adjustment Plate	1	pcs
4	Standard Film	1	pcs
5	User Manual	1	pcs
6	Certificate / Warranty Card	1	pcs
