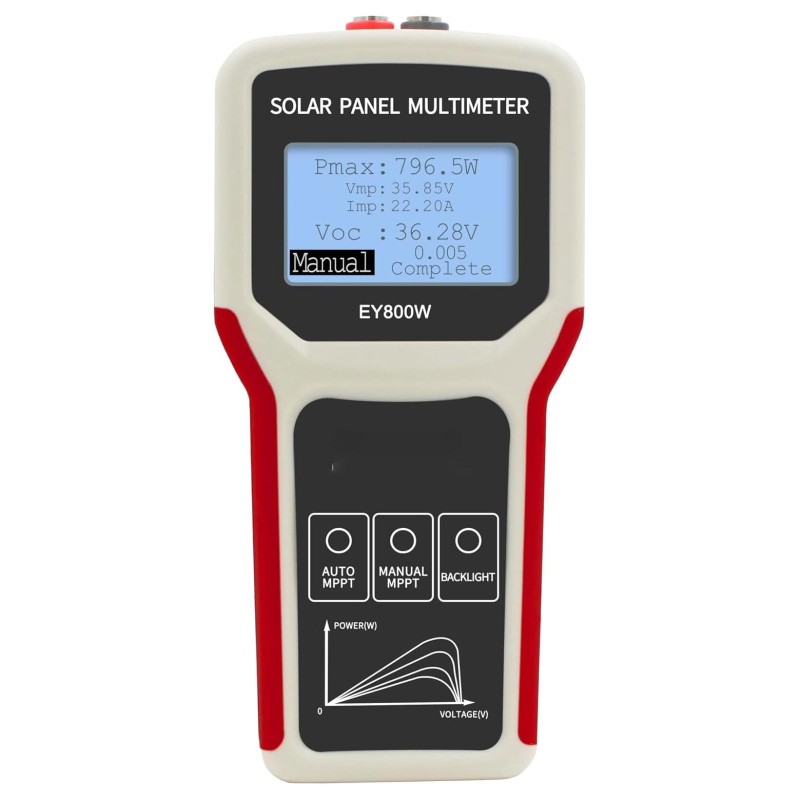

800W Solar Panel Multimeter Maximum Power Output

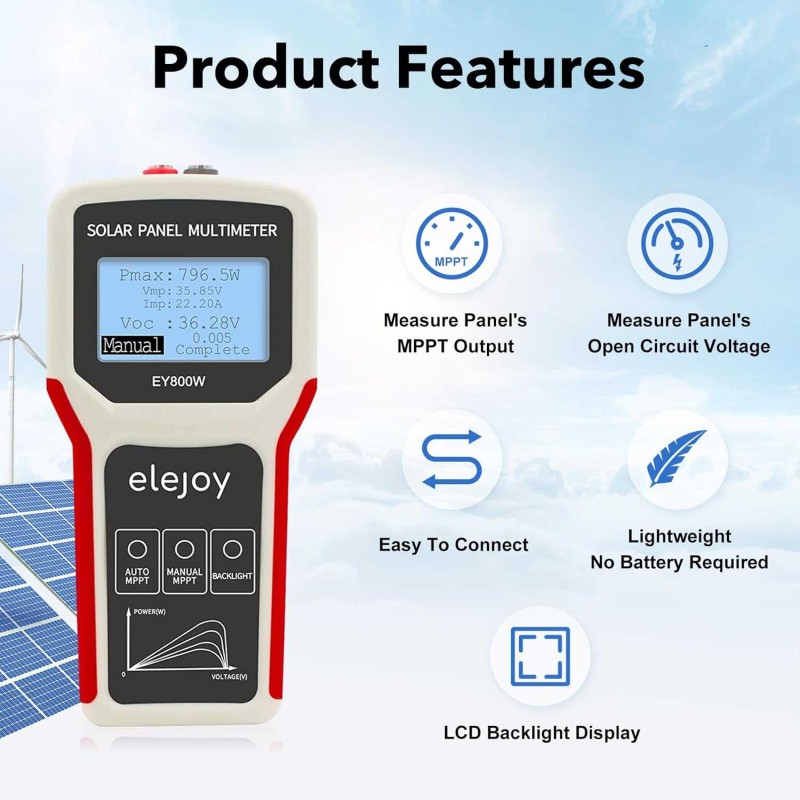

Features:

The MPPT Solar Controller comes with connectors included, making it easy to set up and use

With a real-time display for input and output voltage and current

The device can also measure the open circuit voltage of your solar panel, giving you a better understanding of its performance.

Auto Detection: When pressing the AUTO test button, the instrument automatically adjusts the test interval time according to the current value and rees the digital display. For example, when the of solar panel is , re once every 5S.
Manual Detection: When pressing the manual test button, the instrument starts a scan of the maximum point and rees the digital display.
Open Circuit Voltage Realtime Display: The open circuit voltage will display on the large LCD screen at any time, giving you a better experience.
Large LCD Display with Backlight: The upgraded screen adopts large LCD with backlight, you can turn on or turn off the screen with your like.
Multi-protections: over-voltage protects, over-temperature protects, over-current protects and over rated protects.
Wide Applications: This multimeter can be widely used by PV panel manufacturers, PV panel distributors, PV panel installers, PV panel users and PV panel fans.



Specifications:
Material: ABS
Type: EY800W (optional)
supplys mode: solar panel supplys
Voltage: 12~60V

EY800W: 5-800W
Current:
EY800W: 0~35A

Package size: 250 * 130 * 65mm / 9.8 * 5.1 * 2.6in
Package weight: 500g / 1.1lb

Packing list:
1 * Solar Panel Multimeter
1 * Connecting Cable
1 * Alligator Clip Cable
1 * EVA Toolkit
1 * User Manual
