DIN GB Ouside Micrometer External Micrometer Gauge Vernier Analog
Features:
-For professional user, suitable for factories or companies with high standard
-Meet JIS, GB, DIN, ANSI standard
-Rotational laser scale, easily can read
-With fitted box (plastic or wooden box)
-External Micrometer 0.01 mm
-Check outside diameter of circle，cylinder
-High accuracy thread
-Parallelism between the faces within standard
-Rigidity and strong frame to hold the anvil and spindle
Specification
Metric

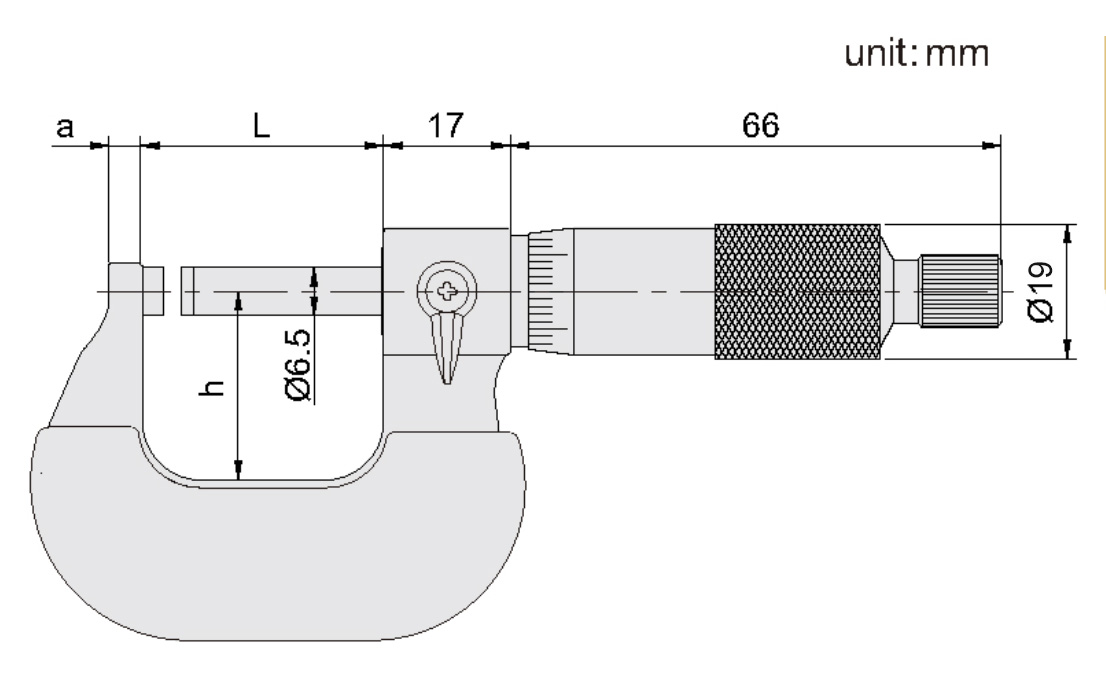

| Order NO | Range | Resolution | Accuracy | a | h | L |
| DM-120010 | 0-25mm | 0.01mm | +/-0.002mm | 6 | 24 | 32 |
| DM-120020 | 25-50mm | 0.01mm | +/-0.002mm | 8 | 32 | 57 |
| DM-120030 | 50-75mm | 0.01mm | +/-0.0025mm | 8 | 45 | 82 |
| DM-120040 | 75-100mm | 0.01mm | +/-0.0025mm | 8 | 57 | 107 |
| DM-120050 | 100-125mm | 0.01mm | +/-0.003mm | 8 | 70 | 133 |
| DM-120060 | 125-150mm | 0.01mm | +/-0.003mm | 8 | 82 | 158 |
| DM-120070 | 150-175mm | 0.01mm | +/-0.0035mm | 8 | 95 | 183 |
| DM-120080 | 175-200mm | 0.01mm | +/-0.0035mm | 8 | 107 | 209 |
| General | |
| Characteristic | Parallelism between the faces within standard |
DIN GB Ouside Micrometer External Micrometer Gauge Vernier Analog
- Product Code: DM-120010
- Availability: In Stock
-
$18.93
Available Options
