Vertical Scale Unit Linear Scale with Assembling Base vertical installation
Features:
• For fitting to vertical travels of milling or similar machines
• Hardened stainless steel
• Imperial and metric scales
• Sliding electronic digital unit
• Two decimal places for metric, three for imperial
• Fixing points
Unit: mm
Data sheet is for reference,
|
Order No |
Range |
Resolution |
Accuracy |

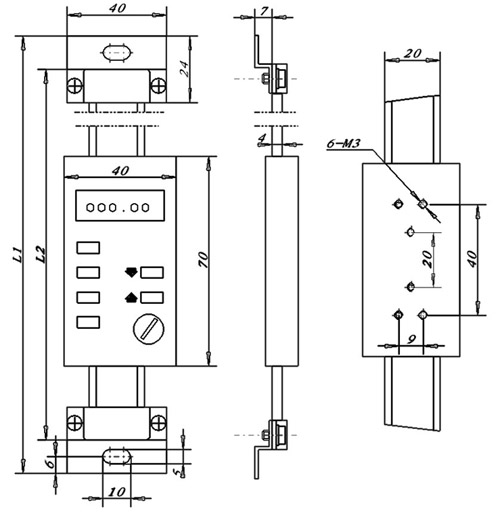

A mm | B mm | C mm | D mm | E mm | F mm | G mm | L1 mm | L2 mm |
| SU-022 | 100 | 0.01 | ±0.02 | 20 | 4 | 40 | 6 | 24 | 80 | 40 | 209 | 185 |
| SU-122 | 150 | 0.01 | ±0.03 | 20 | 4 | 40 | 6 | 24 | 80 | 40 | 259 | 235 |
| SU-222 | 200 | 0.01 | ±0.03 | 20 | 4 | 40 | 6 | 24 | 80 | 40 | 310 | 286 |
| SU-322 | 300 | 0.01 | ±0.04 | 20 | 4 | 40 | 6 | 24 | 80 | 40 | 444 | 420 |
| SU-522 | 500 | 0.01 | ±0.05 | 24 | 5.5 | 45 | 8 | 32 | 80 | 40 | 682 | 650 |
| SU-1022 | 1000 | 0.01 | ±0.10 | 32 | 8 | 60 | 10 | 40 | 95 | 51 | 1240 | 1200 |
| SU-2022 | 2000 | 0.01 | ±0.20 | 32 | 8 | 60 | 10 | 40 | 95 | 51 | 2240 | 2200 |
|
Order |
Range |
Resolution |
Accuracy |
|
SU-022 |
100mm(4") |
0.01mm/0.0005" |
0.02mm |
|
SU-122 |
150mm(6") |
0.01mm/0.0005" |
0.02mm |
|
SU-222 |
200mm(8") |
0.01mm/0.0005" |
0.03mm |
|
SU-322 |
300mm(12") |
0.01mm/0.0005" |
0.04mm |
|
SU-422 |
450mm(16")" |
0.01mm/0.0005" |
0.05mm |
|
SU-522 |
500mm(20") |
0.01mm/0.0005" |
0.05mm |
|
SU-622 |
600MM(24") |
0.01mm/0.0005" |
0.08mm |
|
SU-822 |
800mm(32") |
0.01mm/0.0005" |
0.10mm |
| General | |
| Batteries Inside | NO |
| Calibration Standard | Vertical type scale unit electronic measuring system |
| Function | ABS Hold |
| Range | 100mm, 150mm, 200mm, 300mm, 500mm, 600mm, 800mm, 1000mm, 1500mm2000mm |
Vertical Scale Unit Linear Scale with Assembling Base
- Brand: ROKTOOLS
- Product Code: SU-022
- Availability: In Stock
-
$43.80
Available Options
